As an aircraft homebuilder, are you worried about wiring today’s increasingly complex systems? The ADVANCEDPanel process lets you entrust this important aspect of your aircraft to the people that know aircraft systems best. You can focus on your perfect panel design while we handle the heavy lifting. We take the entire process of building your avionics, electrical system, and other aircraft systems and simplify them into to a unique guided process. It starts with our expert, bespoke design services and ends with a drop-in integrated system that cuts hundreds of hours off your project.

While you spend your time completing your aircraft’s construction and worrying about your paint scheme, ADVANCED takes the panel design we collaborate on and brings it to life. You receive a ready-to-install ADVANCEDPanel, complete with pre-configured, pre-wired avionics already installed.

After you use the simple included instructions to mate your ADVANCEDPanel to your aircraft, you’re done. Want to fly sooner? Give AFS a call.


To start your ADVANCEDPanel, call us today at 503-263-0037

.


Preview image
  • More

    AF-5600 Glass Panel EFIS

    Connect multiple screens together and you can display any combination of EFIS, Engine Monitor, and Map across your screens.

    Close
  • More

    Well-engineered Panel

    Each ADVANCEDPanel System includes a well-engineered instrument panel that is professionally wired, configured, tested and ready to install.

    Close
  • More

    Autopilot Control and COM Radio


    Our revolutionary COM radio interface that will change the way you fly with dedicated buttons for tuning Tower/CTAF, ATIS/WX, ATC, and Ground frequencies. Available in horizontal or vertical versions.

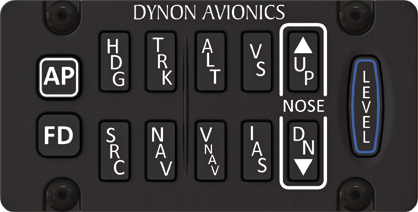

    Autopilot Control Panel: Individual buttons for all autopilot modes let you use your menus exclusively for other features like navigation and flight planning. Built-in 2-axes speed-sensitive trim controller. Available in horizontal or vertical versions.

    Close
  • More

    Secondary Flight Display


    Add a second display for more screen real estate. Display weather, flight plan or full six pack. Your options are open.

    Close
Preview image
  • More

    Dynon's SkyView Glass Panel EFIS

    Choose a SkyView HDX 10" display. Fully-equipped including ADS-B Out capabilities and is truly sunlight readable.

    Close
  • More

    Well-engineered Panel

    Each ADVANCEDPanel System includes a well-engineered instrument panel that is professionally wired, configured, tested and ready to install.

    Close
  • More

    Autopilot Control and COM Radio


    SkyView's revolutionary COM radio interface will change the way you fly with dedicated buttons for tuning Tower/CTAF, ATIS/WX, ATC, and Ground frequencies. Available in horizontal or vertical versions.

    Autopilot Control Panel: Individual buttons for all autopilot modes let you use your SkyView menus exclusively for other features like navigation and flight planning. Built-in 2-axes speed-sensitive trim controller. Available in horizontal or vertical versions.

    Close
  • More

    Secondary Flight Display


    Add a second SkyView display for more screen real estate. Display weather, flight plan or full six pack. Your options are open.

    Close

Installing your aircraft’s avionics and electrical system need no longer be a time consuming, complicated and frustrating experience. Each ADVANCEDPanel includes a custom-designed instrument panel that is engineered, wired, configured, tested and ready to install. All avionics, including the aircraft's autopilot servos, trim servos and lights are all cleanly wired to the new Advanced Control Module. ADVANCEDPanel are available with both SkyView and AF-5000 series displays. The ADVANCEDPanel program is currently available for RV-7, RV-8, RV-9, RV-10, RV-14, Glasair Sportsman and Glastar, Zenith, Lancair 360/ES/IV/III, Kitfox, Sonex, CubCrafters, Rans S19/S20, Bearhawk, and more.. If you fly something else, give us a call. We'll work with you to tailor an ADVANCEDPanel to your aircraft and mission.

VFR ADVANCEDPanel Includes:

  • Touchscreen PFD
  • Touchscreen MFD
  • ADAHRS
  • COM Radio
  • ADS-B Traffic and Weather
  • 2020-Compliant ADS-B Out
    • WAAS GPS
    • Mode-S Transponder
  • Two-Place Stereo Intercom
  • Autopilot Control Module
  • Angle-of-Attack On-Screen Display
  • 406 ELT
  • Engine Monitor Module
  • Advanced Control Module
  • Switches and Audio Jacks
  • Powder Coated and Silk Screened Instrument Panel
  • Wi-Fi Module to enable iPad Connectivity

IFR ADVANCEDPanel Includes:

  • Touchscreen PFD
  • Touchscreen MFD
  • ADAHRS
  • COM Radio
  • 2020-Compliant ADS-B Out
    • WAAS GPS
    • Mode-S Transponder
  • ADS-B Traffic and Weather
  • Autopilot Control Module
  • Angle-of-Attack On-Screen Display
  • 406 ELT
  • Engine Monitor Module
  • Advanced Control Module
  • Switches and Audio Jacks
  • Powder Coated and Silk Screened Instrument Panel
  • Wi-Fi Module to enable iPad Connectivity
  • Avidyne IFD540 GPS Navigator
    - Touchscreen FMS/GPS/NAV/COM
  • Dynon EFIS-D6 Independent Backup
  • PS Engineering Audio Panel
    - Remote audio panel with Bluetooth and Dimensional sound for AFS panels
    - PMA5000EX for Skyview panels

layout styles

Advanced Control Module

At the heart of your ADVANCEDPanel is our groundbreaking Advanced Control Module: the first and only comprehensive power and distribution center for your aircraft’s electrical system, avionics, headsets, aircraft lights, autopilot servos, trim servos, flap motor, control sticks, panel switches, and all your customized harnesses. All of these connect to the ACM with pre-made harnesses, allowing a completely “plug and play” installation, and saving you hundreds of hours of wiring, crimping, troubleshooting and frustration.This provides no-mistake wiring, easy diagnostics, and a much easier upgrade process should you decide to opt for that next-gen widget several years down the road.

The Advanced Control Module is available in two versions: The ACM-ECB (Electronic Circuit Breaker) offers EFIS-based monitoring and control of your aircraft’s electrical system. The ACM is also available with conventional style fuses.



Van's RV-7/9 Examples


VFR Panel with SkyView

Starting from $19,995



IFR Panel with AF-5600

Starting from $36,995

Van's RV-8 Example


VFR Panel with AF-5600
Starting from $19,995

CubCrafters Example


VFR Panel with AF-5600
Starting from $15,995

Glasair Sportsman Example


IFR Glasair Sportsman with AF-5600
Starting from $36,295

Van's RV-10 Example


IFR RV-10 with AF-5600
Starting from $36,995

Van's RV-14 Example


IFR RV-14 with SkyView
Starting from $34,995

Sonex Example


VFR SONEX with SkyView
Starting from $17,950
